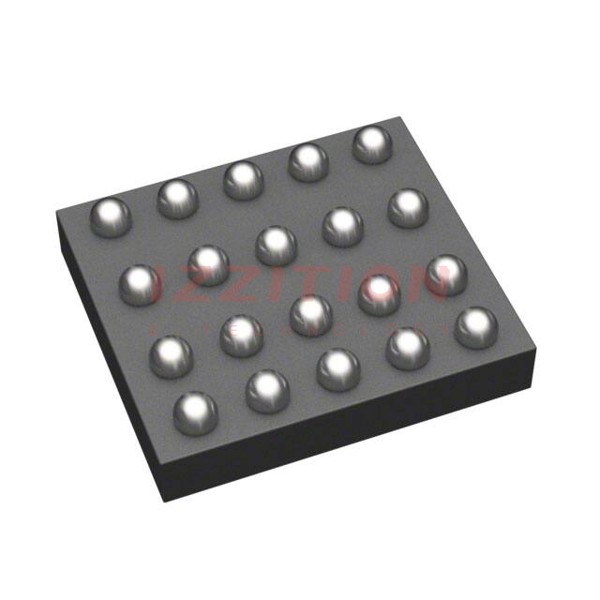

| Part Number | RAA207702GBM#HC0 | RAA207704GBM#HC0 | RAA207703GBM#HC0 | RAA207705GBM#HC0 | RAA207700GBM#HC0 | RAA207701GBM#HC0 |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V | 5V | 5V |
| Current - Output | 5A | 10A | 15A | 5A | 15A | 10A |
| Frequency - Switching | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-WFBGA, CSPBGA | 30-WFBGA, CSPBGA | 35-WFBGA, CSPBGA | 20-WFBGA, CSPBGA | 35-WFBGA, CSPBGA | 30-WFBGA, CSPBGA |
| Supplier Device Package | 20-CSP (2.67x2.37) | 30-CSP (2.67x3.37) | 35-CSP (2.67x3.87) | 20-CSP (2.67x2.37) | 35-CSP (2.67x3.87) | 30-CSP (2.67x3.37) |
