| Part Number | R7FS7G27G2A01CBD#AC0 | R7FS7G27H2A01CBD#AC0 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 240MHz | 240MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB | CANbus, EBI/EMI, Ethernet, I²C, IrDA, MMC/SD, QSPI, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 172 | 172 |
| Program Memory Size | 3MB (3M x 8) | 4MB (4M x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | 64K x 8 | 64K x 8 |
| RAM Size | 640K x 8 | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 25x12b; D/A 2x12b | A/D 25x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

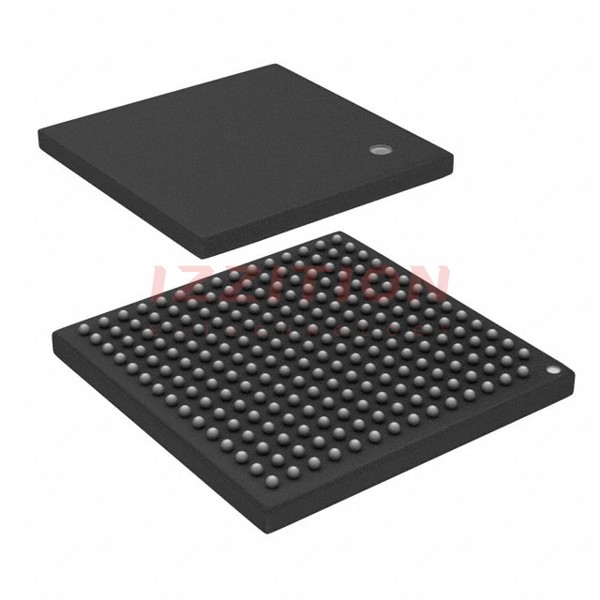

| Package / Case | 224-LFBGA | 224-LFBGA |
| Supplier Device Package | 224-LFBGA (13x13) | 224-LFBGA (13x13) |
