| Part Number | R7FS128783A01CFM#AA0 | R7FS128783A01CFM#AA1 | R7FS128783A01CFJ#AA0 | R7FS128783A01CFL#AA0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CANbus, DALI, I²C, SCI, SPI, UART/USART, USB | CANbus, DALI, I²C, SCI, SPI, UART/USART, USB | CANbus, DALI, I²C, SCI, SPI, UART/USART, USB | CANbus, DALI, I²C, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 51 | 51 | 24 | 35 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 24K x 8 | 24K x 8 | 24K x 8 | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 21x14b; D/A 3x8b | A/D 21x14b; D/A 3x8b | A/D 10x14b; D/A 3x8b | A/D 15x14b; D/A 3x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

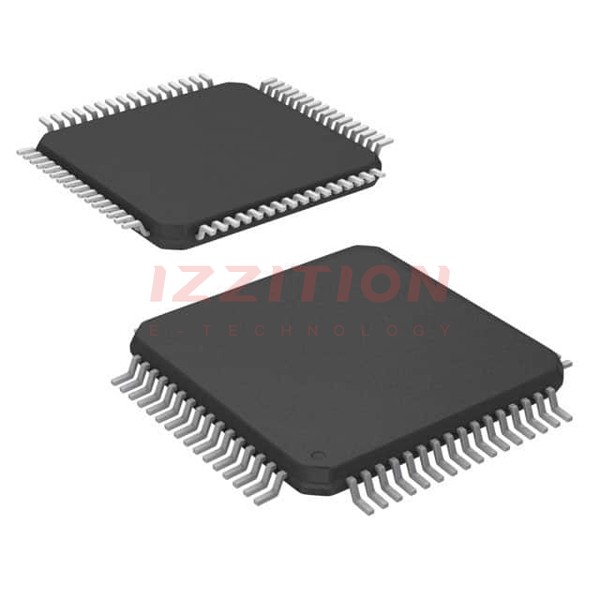

| Package / Case | 64-LQFP | 64-LQFP | 32-LQFP | 48-LQFP |
| Supplier Device Package | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 32-LQFP (7x7) | 48-LFQFP (7x7) |
