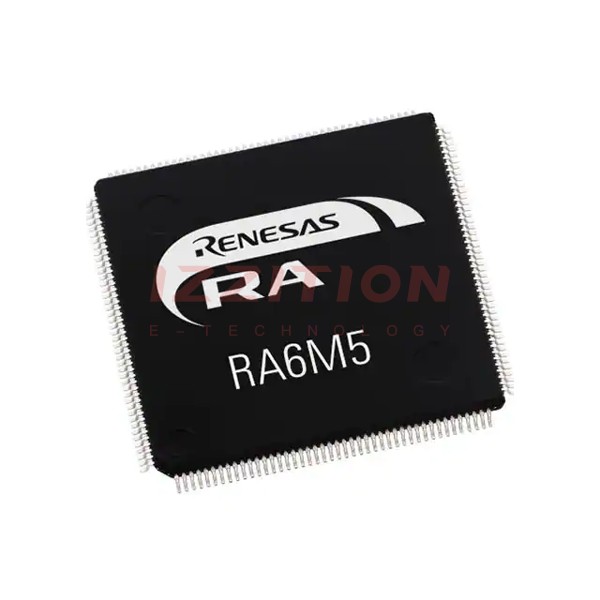

| Part Number | R7FA6M5BH3CFC#AA0 | R7FA6M5BH3CFP#AA0 | R7FA6M5AH3CFC#AA0 | R7FA6M5BF3CFC#AA0 | R7FA6M5BG3CFC#AA0 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M33 | ARM® Cortex®-M33 | ARM® Cortex®-M33 | ARM® Cortex®-M33 | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, QSPI, SCI, SPI, SSI, UART/USART, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, QSPI, SCI, SPI, SSI, UART/USART, USB | CANbus, Ethernet, I²C, MMC/SD, SCI, SPI, QSPI, UART/USART, USB | CANbus, Ethernet, I²C, MMC/SD, SCI, SPI, QSPI, UART/USART, USB | CANbus, Ethernet, I²C, MMC/SD, SCI, SPI, QSPI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | - | - | 133 | 133 | 133 |
| Program Memory Size | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 1MB (1M x 8) | 1.5MB (1.5M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 29x12b; D/A 2x12b | A/D 20x12b; D/A 2x12b | A/D 29x12b SAR; D/A 2x12b | A/D 29x12b SAR; D/A 2x12b | A/D 29x12b SAR; D/A 2x12b |
| Oscillator Type | Internal | Internal | External, Internal | External, Internal | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP | 100-LQFP | 176-LFBGA | 176-LFBGA | 176-LFBGA |
| Supplier Device Package | 176-LFQFP (24x24) | 100-LFQFP (14x14) | 176-LFBGA (13x13) | 176-LFBGA (13x13) | 176-LFBGA (13x13) |
