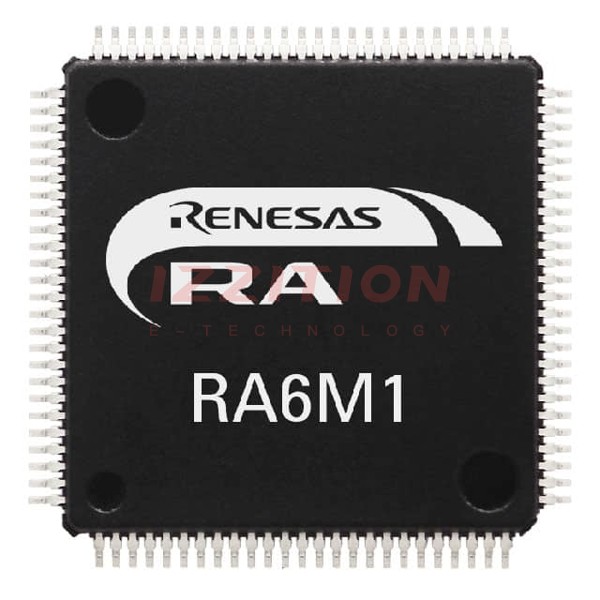

| Part Number | R7FA6M1AD3CFM#AA0 | R7FA6M4AD3CFM#AA0 | R7FA6M1AD3CFP#AA0 | R7FA6T1AD3CFM#AA0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M33 | ARM® Cortex®-M4 | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 200MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, MMC/SD, SCI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, LINbus, QSPI, SCI, SPI, SSI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, MMC/SD, SCI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, MMC/SD, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 67 | - | 67 | 67 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 256K x 8 | 256K x 8 | 256K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 10x12b SAR; D/A 2x12b | A/D 11x12b; D/A 2x12b | A/D 19x12b SAR; D/A 2x12b | A/D 10x12b SAR; D/A 2x12b |
| Oscillator Type | Internal | External, Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-LQFP | 64-LQFP | 100-LQFP | 64-LQFP |
| Supplier Device Package | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 100-LFQFP (14x14) | 64-LFQFP (10x10) |
