| Part Number | R7FA4M1AB3CFL#AA0 | R7FA4M1AB3CFM#AA0 | R7FA4M1AB3CFP#AA0 | R7FA4M2AB3CFL#AA0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, SCI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, SCI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, SCI, SPI, UART/USART, USB | CANbus, I²C, QSPI, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | AES, DMA, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 31 | 49 | 81 | 30 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 254KB (254K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 2.7V ~ 3.6V |
| Data Converters | A/D 14x14b SAR; D/A 1x8b, 2x12b | A/D 18x14b SAR; D/A 1x8b, 2x12b | A/D 25x14b SAR; D/A 1x8b, 2x12b | A/D 7x12b SAR; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

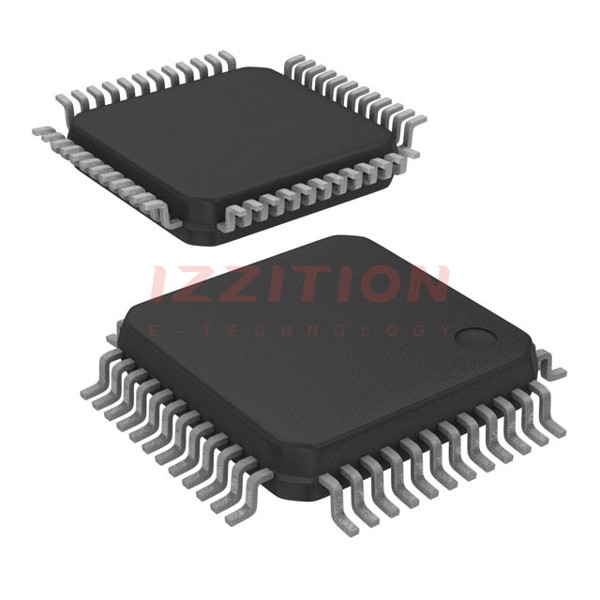

| Package / Case | 48-LQFP | 64-LQFP | 100-LQFP | 48-LQFP |
| Supplier Device Package | 48-LFQFP (7x7) | 64-LFQFP (10x10) | 100-LFQFP (14x14) | 48-LFQFP (7x7) |
