Renesas Electronics America Inc-R7F701402EA02AFB#YT0 - Embedded - Microcontrollers Product Specifications and Latest Quotes

Core Processor:	RH850G3M
Core Size:	32-Bit Single-Core
Speed:	120MHz
Connectivity:	CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, SSI, UART/USART, USB
Peripherals:	DMA, I²S, LCD, LVD, POR, PWM, WDT
Number of I/O:	103
Program Memory Size:	4MB (4M x 8)
Program Memory Type:	Flash
EEPROM Size:	64K x 8
RAM Size:	512K x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 5.5V
Data Converters:	A/D 16x12b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 150°C (TA)
Mounting Type:	Surface Mount

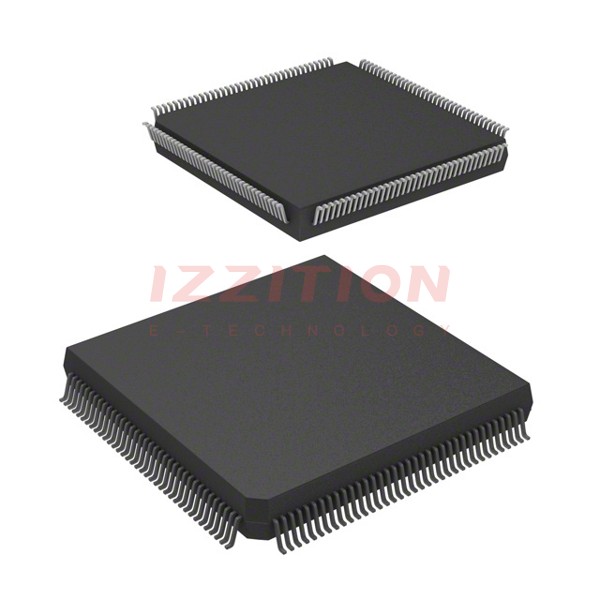

Package / Case:	144-LQFP
Supplier Device Package:	144-LFQFP (20x20)

Renesas Electronics America Inc R7F701402EA02AFB#YT0
