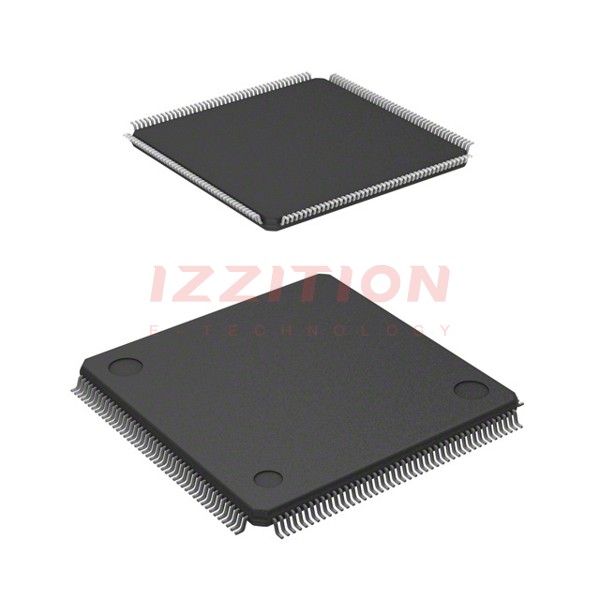

| Part Number | R5F72865N100FA#U2 | R5F72865N100FP#U2 | R5F72867N100FA#U2 | R5F72865D100FA#U2 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | SH2A | SH2A | SH2A | SH2A |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, I²C, SCI, SSU, USB | CANbus, I²C, SCI, SSU, USB | CANbus, I²C, SCI, SSU, USB | CANbus, I²C, SCI, SSU, USB |
| Peripherals | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT |
| Number of I/O | 101 | 101 | 101 | 101 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 1MB (1M x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 24K x 8 | 24K x 8 | 32K x 8 | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Data Converters | A/D 12x12b, 2x8b | A/D 12x12b, 2x8b | A/D 12x12b, 2x8b | A/D 12x12b, 2x8b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP | 176-LQFP | 176-LQFP | 176-LQFP |
| Supplier Device Package | 176-LFQFP (20x20) | 176-LFQFP (24x24) | 176-LFQFP (20x20) | 176-LFQFP (20x20) |
