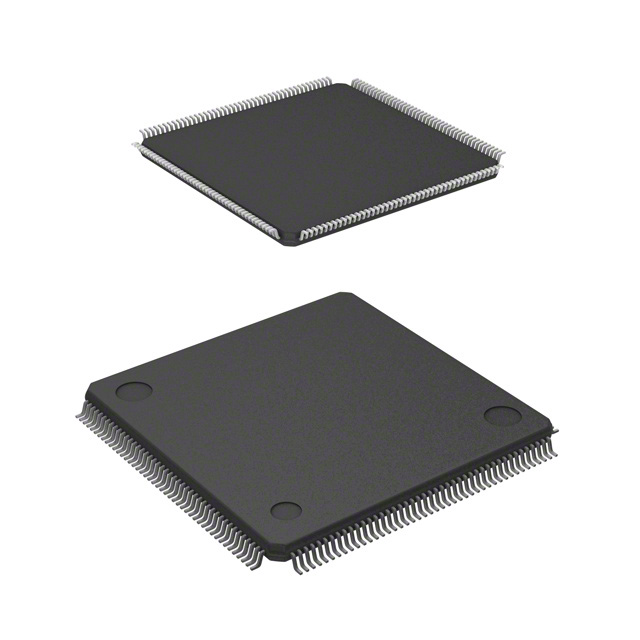

| Part Number | R5F72145HDFA#V1 | R5F72145HDFP#V1 | R5F72145BDFA#V1 | R5F72145GDFA#V1 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | SH2A-FPU | SH2A-FPU | SH2A-FPU | SH2A-FPU |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 200MHz | 100MHz |
| Connectivity | CANbus, Ethernet, I²C, SCI, SPI, USB | CANbus, Ethernet, I²C, SCI, SPI, USB | CANbus, Ethernet, I²C, SCI, SPI, USB | CANbus, Ethernet, I²C, SCI, SPI, USB |
| Peripherals | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT |
| Number of I/O | 112 | 112 | 112 | 112 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b |
| Oscillator Type | External | External | External | External |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 176-LQFP | 176-LQFP | 176-LQFP | 176-LQFP |
| Supplier Device Package | 176-LFQFP (20x20) | 176-LFQFP (24x24) | 176-LFQFP (20x20) | 176-LFQFP (20x20) |
