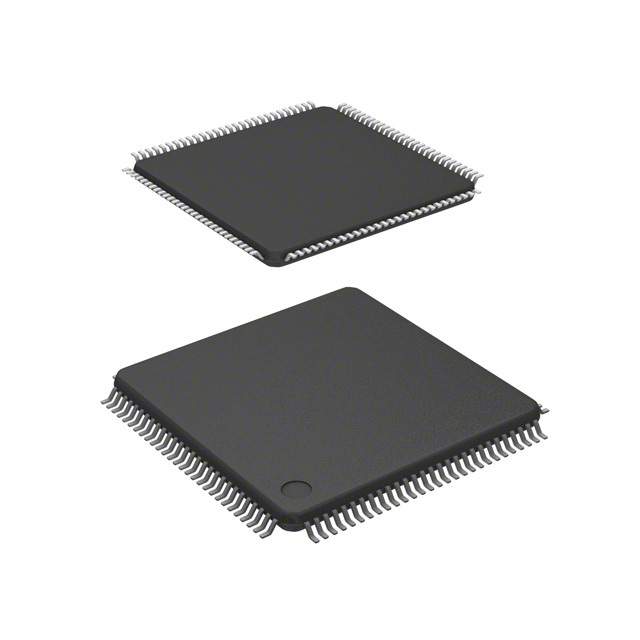

| Part Number | R5F566TEEDFH#30 | R5F566TEEDFN#30 | R5F566TEEDFM#30 | R5F566TEEDFP#30 | R5F566TAEDFH#30 | R5F566TEADFH#30 | R5F566TEEDFF#30 | R5F566TEEDFH#10 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Discontinued at Digi-Key | Active | Active | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active |
| Core Processor | RXv3 | RXv3 | RXv3 | RXv3 | RXv3 | RXv3 | RXv3 | RXv3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 160MHz | 160MHz | 160MHz | 160MHz | 160MHz | 160MHz | 160MHz | 160MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART | CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 84 | 52 | 39 | 72 | 84 | 84 | 52 | 84 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 22x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 15x12b; D/A 2x12b | A/D 22x12b; D/A 2x12b | A/D 22x12b; D/A 2x12b | A/D 22x12b; D/A 2x12b | A/D 19x12b; D/A 2x12b | A/D 22x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 112-LQFP | 80-LQFP | 64-LQFP | 100-LQFP | 112-LQFP | 112-LQFP | 80-LQFP | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) | 80-LFQFP (12x12) | 64-LFQFP (10x10) | 100-LFQFP (14x14) | 112-LQFP (20x20) | 112-LQFP (20x20) | 80-LQFP (14x14) | 112-LQFP (20x20) |
