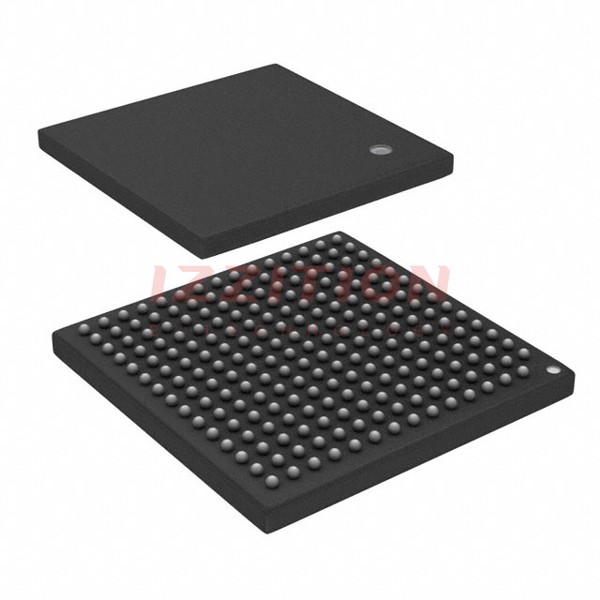

| Part Number | R5F566NNDDBD#20 | R5F566NNDDBG#20 | R5F566NNHDBD#20 | R5F566NDDDBD#20 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | RXv3 | RXv3 | RXv3 | RXv3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 182 | 136 | 182 | 182 |
| Program Memory Size | 4MB (4M x 8) | 4MB (4M x 8) | 4MB (4M x 8) | 2MB (2M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 1M x 8 | 1M x 8 | 1M x 8 | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x12b, 21x12b; D/A 2x12b | A/D 29x12b; D/A 2x12b | A/D 29x12b; D/A 2x12b | A/D 29x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 224-LFBGA | 176-LFBGA | 224-LFBGA | 224-LFBGA |
| Supplier Device Package | 224-LFBGA (13x13) | 176-LFBGA (13x13) | 224-LFBGA (13x13) | 224-LFBGA (13x13) |
