Please send RFQ , we will respond immediately.
| Part Number | R5F56517BDBP#20 | R5F56519BDBP#20 | R5F56517FDBP#20 | R5F56514BDBP#20 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | RXv2 | RXv2 | RXv2 | RXv2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 120MHz |
| Connectivity | I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB | I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB | I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB | I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 41 | 41 | 41 | 41 |
| Program Memory Size | 768KB (768K x 8) | 1MB (1M x 8) | 768KB (768K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 10x12b; D/A 1x12b | A/D 10x12b | A/D 10x12b; D/A 1x12b | A/D 10x12b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

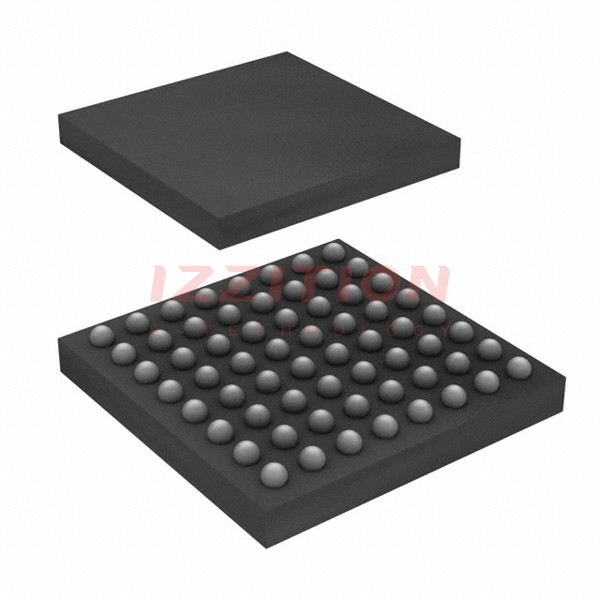

| Package / Case | 64-TFBGA | 64-TFBGA | 64-TFBGA | 64-TFBGA |
| Supplier Device Package | 64-TFBGA (4.5x4.5) | 64-TFBGA (4.5x4.5) | 64-TFBGA (4.5x4.5) | 64-TFBGA (4.5x4.5) |
