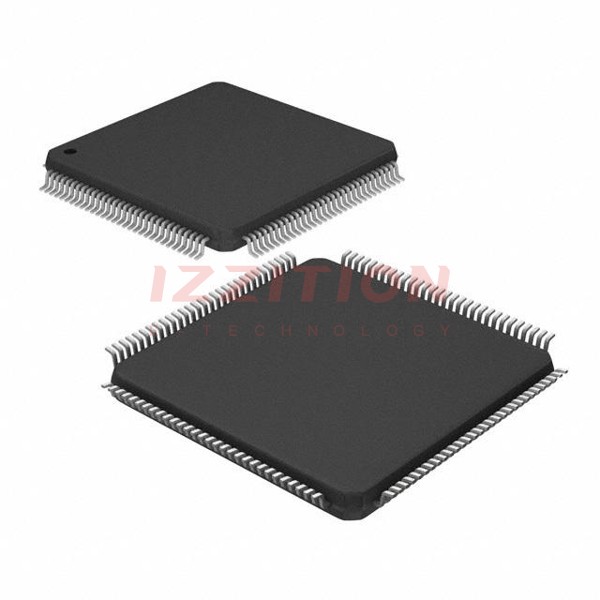

| Part Number | R5F563TBADFA#V1 | R5F563TBADFH#V1 | R5F563TBBDFA#V1 | R5F563TBADFP#V1 | R5F563TBADFB#V1 | R5F563TCADFA#V1 | R5F563TEADFA#V1 | R5F563TBADFA#V0 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | RX | RX | RX | RX | RX | RX | RX | RX |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 72 | 69 | 72 | 57 | 81 | 72 | 72 | 72 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | 512KB (512K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 24K x 8 | 24K x 8 | 24K x 8 | 24K x 8 | 24K x 8 | 32K x 8 | 48K x 8 | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 3.6V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b | A/D 20x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b | A/D 12x10b, 8x12b; D/A 2x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 120-LQFP | 112-LQFP | 120-LQFP | 100-LQFP | 144-LQFP | 120-LQFP | 120-LQFP | 120-LQFP |
| Supplier Device Package | 120-LQFP (16x16) | 112-LQFP (20x20) | 120-LQFP (16x16) | 100-LFQFP (14x14) | 144-LFQFP (20x20) | 120-LQFP (16x16) | 120-LQFP (16x16) | 120-LQFP (16x16) |
