Please send RFQ , we will respond immediately.
| Part Number | R5F563NBDDLJ#U0 | R5F563NBDDLK#U0 | R5F563NDDDLJ#U0 | R5F563NEDDLJ#U0 | R5F563NADDLJ#U0 | R5F563NBCDLJ#U0 | R5F563NBDDLC#U0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | RX | RX | RX | RX | RX | RX | RX |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, Ethernet, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 78 | 111 | 78 | 78 | 78 | 78 | 133 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1.5MB (1.5M x 8) | 2MB (2M x 8) | 768KB (768K x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 21x12b; D/A 2x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

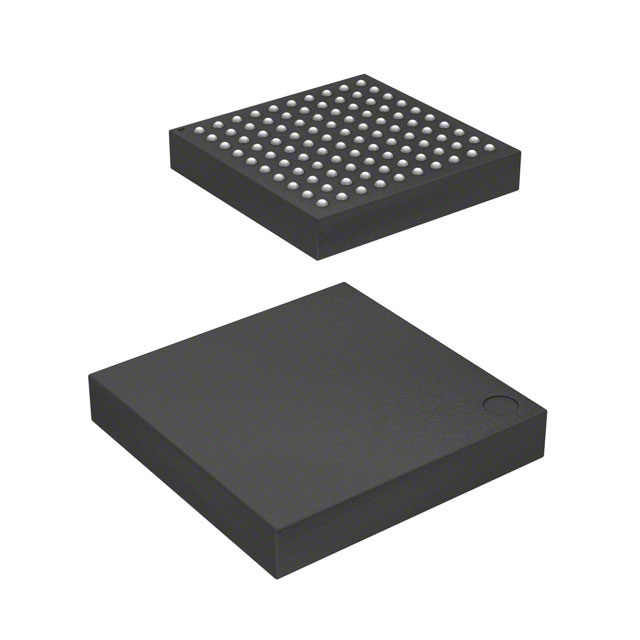

| Package / Case | 100-TFLGA | 145-TFLGA | 100-TFLGA | 100-TFLGA | 100-TFLGA | 100-TFLGA | 177-TFLGA |
| Supplier Device Package | 100-TFLGA (7x7) | 145-TFLGA (7x7) | 100-TFLGA (7x7) | 100-TFLGA (7x7) | 100-TFLGA (7x7) | 100-TFLGA (7x7) | 177-TFLGA (8x8) |
