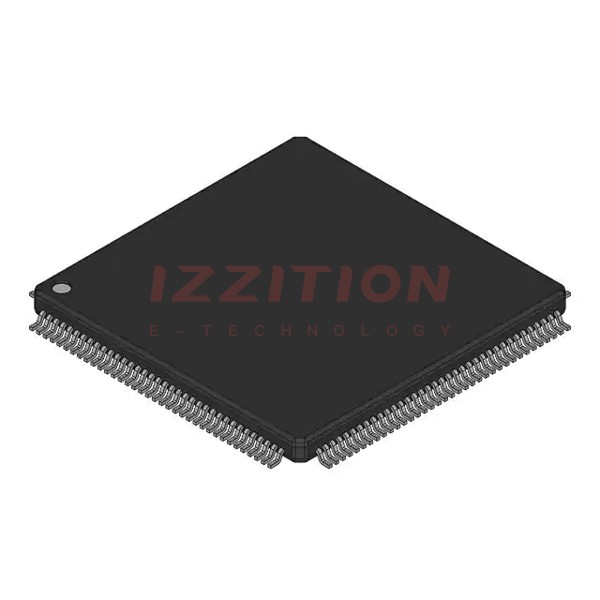

| Part Number | R5F5631WDDFB#V0 | R5F5631WDDFC#V0 | R5F5631WDDFP#V0 | R5F5631WHDFB#V0 | R5F5631YDDFB#V0 | R5F5631BDDFB#V0 | R5F5631DDDFB#V0 | R5F5631EDDFB#V0 | R5F5631FDDFB#V0 | R5F5631GDDFB#V0 | R5F5631JDDFB#V0 | R5F5631KDDFB#V0 | R5F5631WDDFB#10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Not For New Designs | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Not For New Designs | Discontinued at Digi-Key | Discontinued at Digi-Key | Not For New Designs | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Not For New Designs |
| Core Processor | RX | RX | RX | RX | RX | RX | RX | RX | RX | RX | RX | RX | RX |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB | CANbus, EBI/EMI, I²C, LINbus, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 111 | 133 | 78 | 111 | 111 | 111 | 111 | 111 | 111 | 111 | 111 | 111 | 111 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 1.5MB (1.5M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) | 2MB (2M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| RAM Size | 192K x 8 | 192K x 8 | 192K x 8 | 192K x 8 | 256K x 8 | 128K x 8 | 128K x 8 | 128K x 8 | 256K x 8 | 192K x 8 | 256K x 8 | 192K x 8 | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 14x12b; D/A 1x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b | A/D 8x10b, 21x12b; D/A 2x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LQFP | 176-LQFP | 100-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) | 176-LFQFP (24x24) | 100-LFQFP (14x14) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) |
