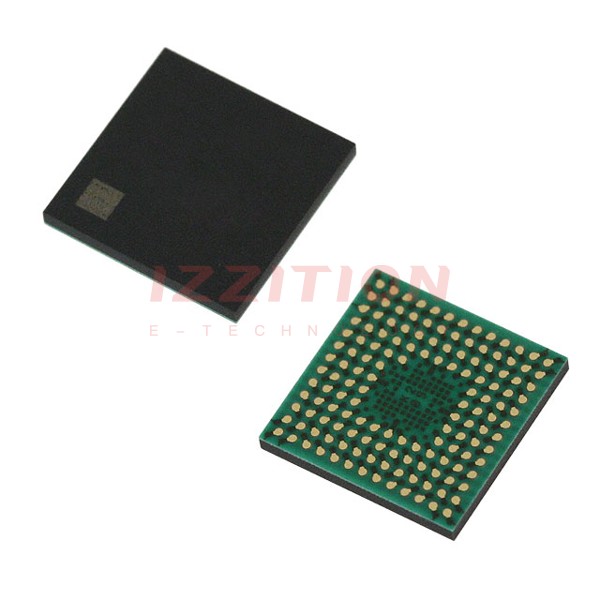

| Part Number | R5F56216BDLE#U0 | R5F56217BDLE#U0 | R5F56218BDLE#U0 | R5F56216BDLD#U0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | RX | RX | RX | RX |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, EBI/EMI, I²C, SCI, SPI, USB | CANbus, EBI/EMI, I²C, SCI, SPI, USB | CANbus, EBI/EMI, I²C, SCI, SPI, USB | CANbus, EBI/EMI, I²C, SCI, SPI, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 103 | 103 | 103 | 58 |
| Program Memory Size | 256KB (256K x 8) | 384KB (384K x 8) | 512KB (512K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 96K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 8x10/12b; D/A 2x10b | A/D 8x10/12b; D/A 2x10b | A/D 8x10/12b; D/A 2x10b | A/D 8x10/12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 145-TFLGA | 145-TFLGA | 145-TFLGA | 85-TFLGA |
| Supplier Device Package | 145-TFLGA (9x9) | 145-TFLGA (9x9) | 145-TFLGA (9x9) | 85-TFLGA (7x7) |
