Please send RFQ , we will respond immediately.
| Part Number | R5F52316ADNE#20 | R5F52316CDNE#20 | R5F52316ADNE#U0 | R5F52318ADNE#20 | R5F52317ADNE#20 | R5F52306ADNE#20 | R5F52315ADNE#20 | R5F52316ADND#20 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Not For New Designs | Active | Active | Active | Active | Active |
| Core Processor | RXv2 | RXv2 | RXv2 | RXv2 | RXv2 | RXv2 | RXv2 | RXv2 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 54MHz | 54MHz | 54MHz | 54MHz | 54MHz | 54MHz | 54MHz | 54MHz |
| Connectivity | CANbus, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, EBI/EMI, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG | CANbus, I²C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 30 | 30 | 30 | 30 | 30 | 34 | 30 | 43 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 384KB (384K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 32K x 8 | 32K x 8 | 32K x 8 | 64K x 8 | 64K x 8 | 32K x 8 | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 8x12b | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

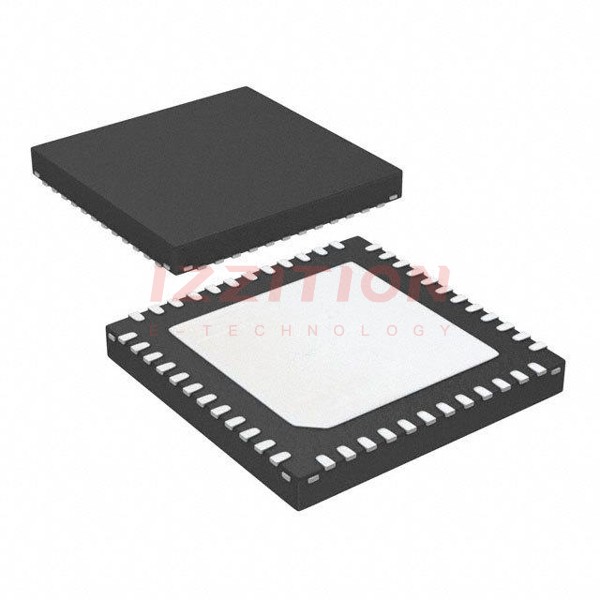

| Package / Case | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 64-WFQFN Exposed Pad |
| Supplier Device Package | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 64-HWQFN (9x9) |
