Please send RFQ , we will respond immediately.

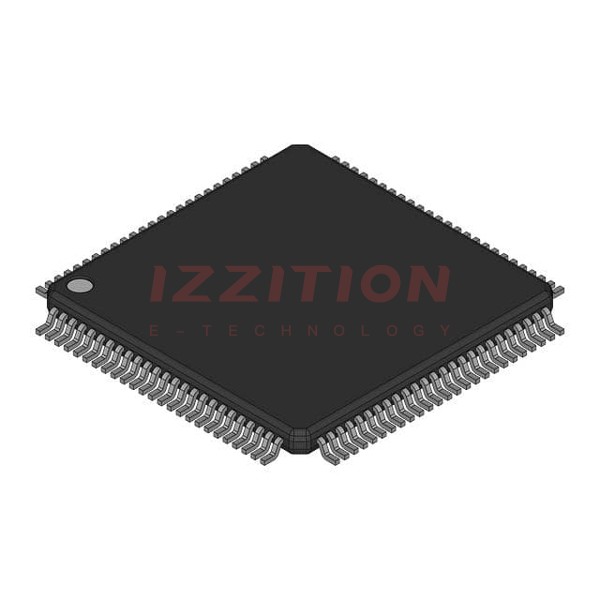

| Part Number | R5F3650MDFA#U0 | R5F3650NDFA#U0 | R5F3650TDFA#U0 | R5F3650RDFA#U0 | R5F36506DFA#U0 | R5F3650EDFA#U0 | R5F3650KDFA#U0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Active | Not For New Designs |
| Core Processor | M16C/60 | M16C/60 | M16C/60 | M16C/60 | M16C/60 | M16C/60 | M16C/60 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART | EBI/EMI, I²C, SIO, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 768KB (768K x 8) | 640KB (640K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 384KB (384K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | - | 8K x 8 |
| RAM Size | 31K x 8 | 47K x 8 | 47K x 8 | 47K x 8 | 12K x 8 | 20K x 8 | 31K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP | 100-BQFP |
| Supplier Device Package | 100-QFP (14x20) | 100-QFP (14x20) | 100-QFP (14x20) | 100-QFP (14x20) | 100-QFP (14x20) | 100-QFP (14x20) | 100-QFP (14x20) |
