Please send RFQ , we will respond immediately.

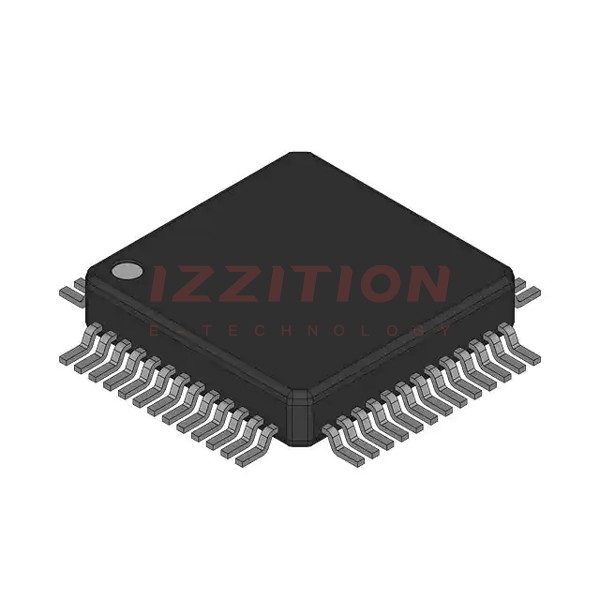

| Part Number | R5F2LA56ANFP#V0 | R5F2LA86ANFP#V0 | R5F2LA52ANFP#V0 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Active |
| Core Processor | R8C | R8C | R8C |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LCD, POR, PWM, Voltage Detect, WDT | LCD, POR, PWM, Voltage Detect, WDT | LCD, POR, PWM, Voltage Detect, WDT |
| Number of I/O | 44 | 72 | 44 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | - |
| RAM Size | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 7x10b | A/D 12x10b | A/D 7x10b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 52-LQFP | 80-LQFP | 52-LQFP |
| Supplier Device Package | 52-LQFP (10x10) | 80-LQFP (12x12) | 52-LQFP (10x10) |
