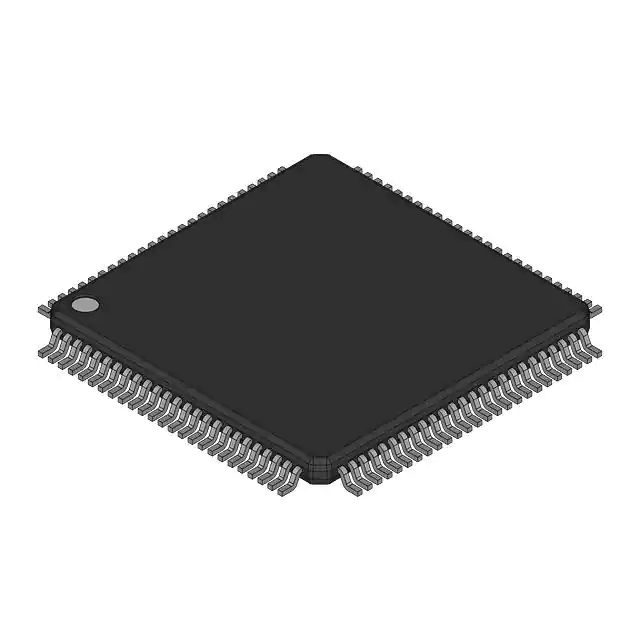

| Part Number | R5F2L3A8BNFP#U1 | R5F2L3ACBNFP#U1 | R5F2L368BNFP#U1 | R5F2L388BNFP#U1 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | R8C | R8C | R8C | R8C |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LCD, POR, PWM, Voltage Detect, WDT | LCD, POR, PWM, Voltage Detect, WDT | LCD, POR, PWM, Voltage Detect, WDT | LCD, POR, PWM, Voltage Detect, WDT |
| Number of I/O | 88 | 88 | 52 | 68 |
| Program Memory Size | 64KB (64K x 8) | 128KB (128K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 8K x 8 | 10K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 20x10b; D/A 2x8b | A/D 20x10b; D/A 2x8b | A/D 10x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP | 64-LQFP | 80-LQFP |
| Supplier Device Package | 100-LFQFP (14x14) | 100-LFQFP (14x14) | 64-LFQFP (10x10) | 80-LQFP (12x12) |
