| Part Number | R5F213J5TNNP#W4 | R5F213J6TNNP#W4 | R5F213J4TNNP#W4 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Core Processor | R8C | R8C | R8C |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, UART/USART | I²C, UART/USART | I²C, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 31 | 31 | 31 |
| Program Memory Size | 24KB (24K x 8) | 32KB (32K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 2K x 8 | 2.5K x 8 | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b | A/D 12x10b | A/D 12x10b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

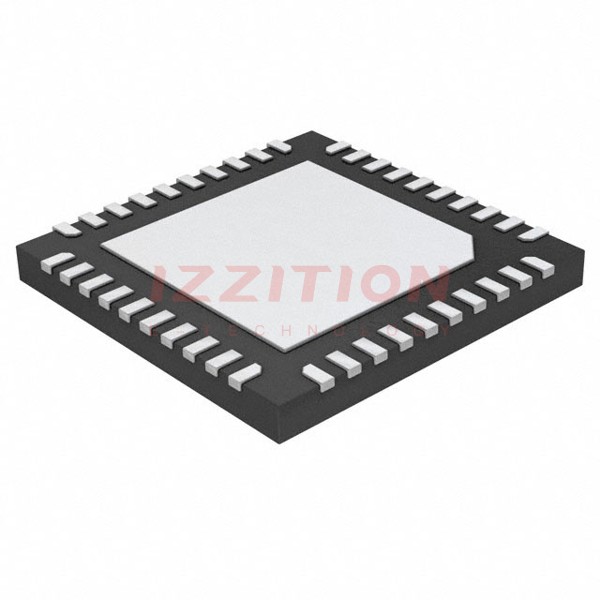

| Package / Case | 40-XFQFN Exposed Pad | 40-XFQFN Exposed Pad | 40-XFQFN Exposed Pad |
| Supplier Device Package | 40-HXQFN (5x5) | 40-HXQFN (5x5) | 40-HXQFN (5x5) |
