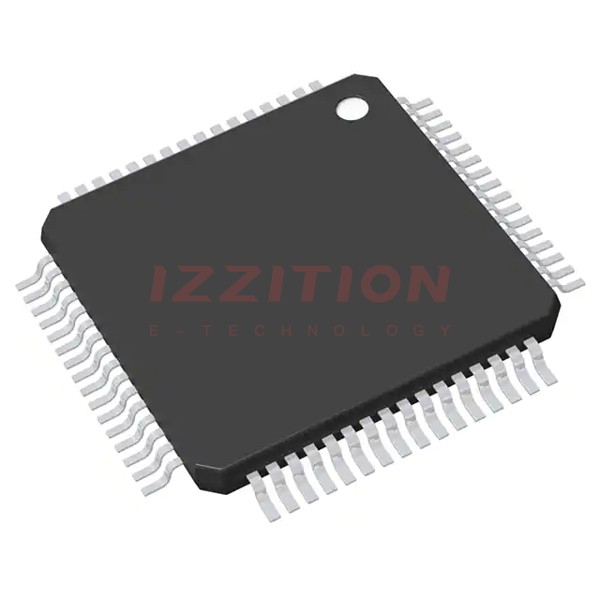

| Part Number | R5F2136ACNFP#50 | R5F2136ACNFP#V0 | R5F2136ASNFP#50 | R5F2136CCNFP#50 | R5F2135ACNFP#50 | R5F21364CNFP#50 | R5F21365CNFP#50 | R5F21366CNFP#50 | R5F21368CNFP#50 | R5F2136ACDFP#50 | R5F2136ACNFA#50 | R5F2136ACNFP#30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active | Not For New Designs |
| Core Processor | R8C | R8C | R8C | R8C | R8C | R8C | R8C | R8C | R8C | R8C | R8C | R8C |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 59 | 59 | 59 | 59 | 47 | 59 | 59 | 59 | 59 | 59 | 59 | 59 |
| Program Memory Size | 96KB (96K x 8) | 96KB (96K x 8) | 96KB (96K x 8) | 128KB (128K x 8) | 96KB (96K x 8) | 16KB (16K x 8) | 24KB (24K x 8) | 32KB (32K x 8) | 64KB (64K x 8) | 96KB (96K x 8) | 96KB (96K x 8) | 96KB (96K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 10K x 8 | 8K x 8 | 1.5K x 8 | 2K x 8 | 2.5K x 8 | 6K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 52-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP |
| Supplier Device Package | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 52-LQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LQFP (14x14) | 64-LFQFP (10x10) |
