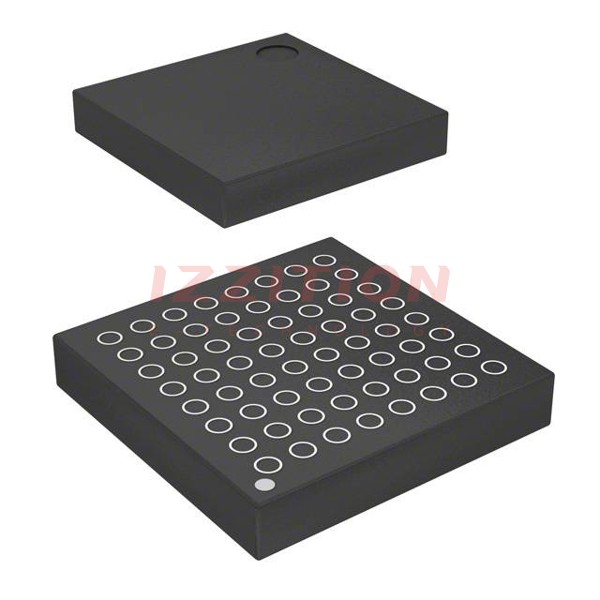

| Part Number | R5F212ACSNLG#U0 | R5F212BCSNLG#U0 | R5F212A7SNLG#U0 | R5F212AASNLG#U0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | R8C | R8C | R8C | R8C |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 55 | 55 | 55 | 55 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 48KB (48K x 8) | 96KB (96K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 7.5K x 8 | 7.5K x 8 | 2.5K x 8 | 7K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 5.5V | 2.2V ~ 5.5V | 2.2V ~ 5.5V | 2.2V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b | A/D 12x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TFLGA | 64-TFLGA | 64-TFLGA | 64-TFLGA |
| Supplier Device Package | 64-TFLGA (6x6) | 64-TFLGA (6x6) | 64-TFLGA (6x6) | 64-TFLGA (6x6) |
