Please send RFQ , we will respond immediately.

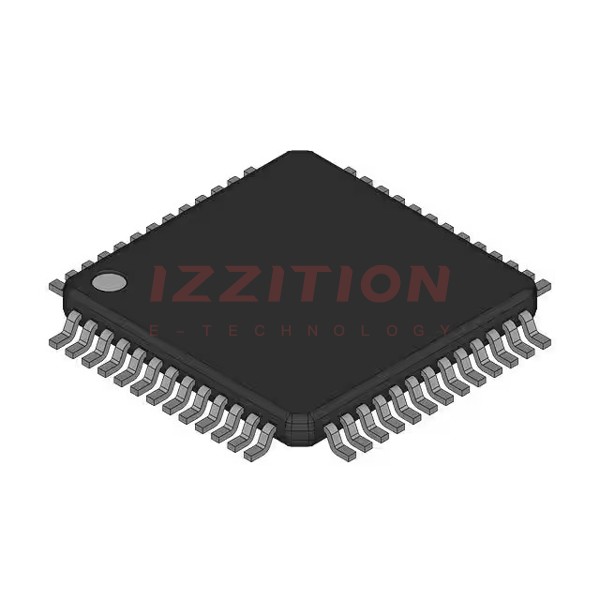

| Part Number | R5F21256SYFP#V2 | R5F21266SYFP#V2 | R5F21276SYFP#V2 | R5F21257SYFP#V2 | R5F21256SDFP#V2 | R5F21256SNFP#V2 |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Not For New Designs | Active |
| Core Processor | - | R8C | R8C | R8C | R8C | R8C |
| Core Size | - | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | - | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | - | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART | I²C, LINbus, SIO, SSU, UART/USART |
| Peripherals | - | LED, POR, Voltage Detect, WDT | LED, POR, Voltage Detect, WDT | POR, Voltage Detect, WDT | POR, Voltage Detect, WDT | POR, Voltage Detect, WDT |
| Number of I/O | - | 25 | 25 | 41 | 41 | 41 |
| Program Memory Size | - | 32KB (32K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | - | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | 2K x 8 | - | - | - |
| RAM Size | - | 1.5K x 8 | 1.5K x 8 | 2.5K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | - | 2.2V ~ 5.5V | 2.2V ~ 5.5V | 2.2V ~ 5.5V | 2.2V ~ 5.5V | 2.2V ~ 5.5V |
| Data Converters | - | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 12x10b | A/D 12x10b |
| Oscillator Type | - | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | - | -20°C ~ 105°C (TA) | -20°C ~ 105°C (TA) | -20°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -20°C ~ 85°C (TA) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 32-LQFP | 32-LQFP | 52-LQFP | 52-LQFP | 52-LQFP |
| Supplier Device Package | - | 32-LQFP (7x7) | 32-LQFP (7x7) | 52-LQFP (10x10) | 52-LQFP (10x10) | 52-LQFP (10x10) |
