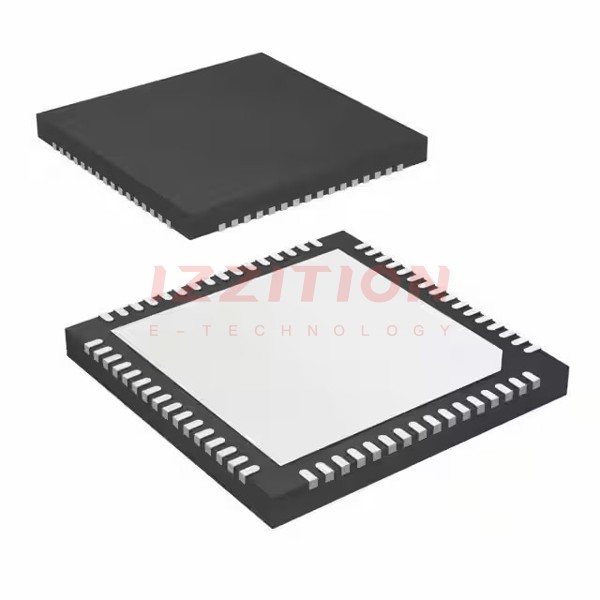

| Part Number | R5F11FLLDNA#20 | R5F11FLLDNA#40 | R5F11FLJDNA#20 | R5F11FLKDNA#20 | R5F11FLLANA#20 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 41 | 26 | 41 | 26 | 41 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| RAM Size | 48K x 8 | 48K x 8 | 24K x 8 | 32K x 8 | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 6x10b | A/D 6x10b | A/D 6x10b | A/D 6x10b | A/D 6x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-HVQFN (9x9) | 64-HVQFN (9x9) | 64-HVQFN (9x9) | 64-HVQFN (9x9) | 64-HVQFN (9x9) |
