Please send RFQ , we will respond immediately.

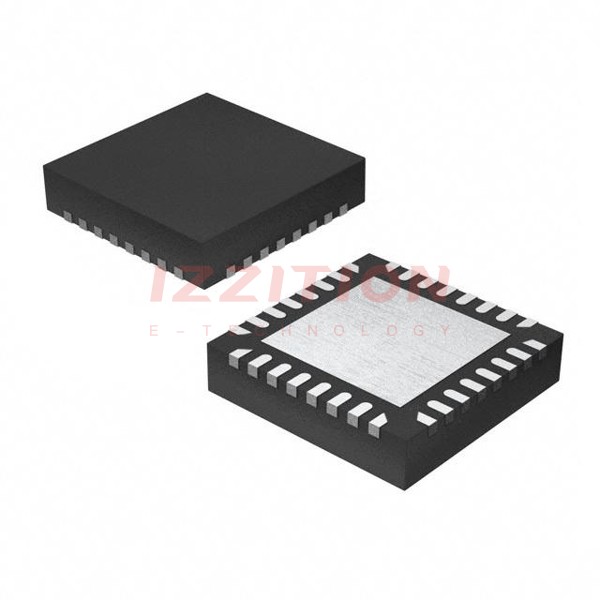

| Part Number | R5F11CBCGNA#40 | R5F117BCGNA#40 | R5F11CBCGNA#00 | R5F11CBCGNA#20 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 24MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 7 | 21 | 7 | 10 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 2K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 8K x 8 | 3K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V | 1.6V ~ 3.6V | 2.4V ~ 5.5V | 2.4V ~ 5.5V |
| Data Converters | A/D 3x10b, 8x24b Sigma-Delta; D/A 1x12b | A/D 12x8/12b | A/D 3x10b, 8x24b Sigma-Delta; D/A 1x12b | A/D 8x10b, 3x24b; D/A 1x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-HVQFN (5x5) | 32-HVQFN (5x5) | 32-HVQFN (5x5) | 32-HVQFN (5x5) |
