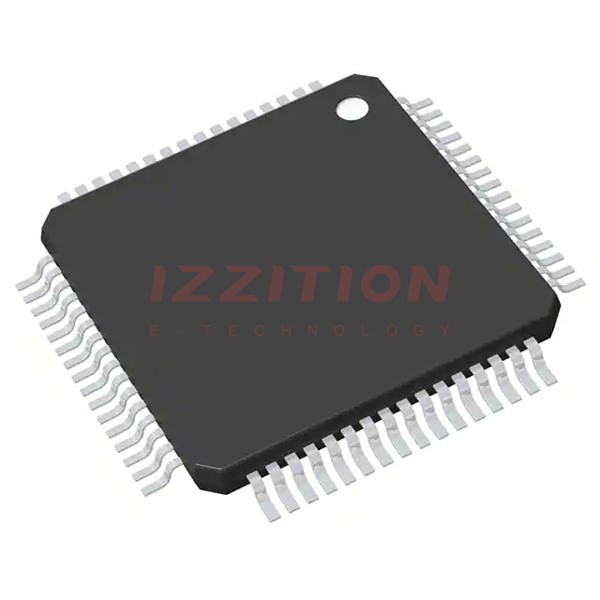

| Part Number | R5F10WLDGFB#30 | R5F10WLFGFB#30 | R5F10WMDGFB#30 | R5F10WLEGFB#30 | R5F10WLGGFB#30 | R5F10WLDGFB#50 | R5F10WLAGFB#30 | R5F10WLCGFB#30 | R5F10WLDAFB#30 | R5F10WLDGFB#10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT | DMA, LCD, LVD, POR, PWM, WDT |
| Number of I/O | 42 | 42 | 58 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Program Memory Size | 48KB (48K x 8) | 96KB (96K x 8) | 48KB (48K x 8) | 64KB (64K x 8) | 128KB (128K x 8) | 48KB (48K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 48KB (48K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 2K x 8 | 6K x 8 | 2K x 8 | 4K x 8 | 8K x 8 | 2K x 8 | 1K x 8 | 1.5K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 9x8/10b | A/D 9x8/10b | A/D 12x8/10b | A/D 9x10b | A/D 9x10b | A/D 9x8/10b | A/D 9x8/10b | A/D 9x10b | A/D 9x10b | A/D 9x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-LQFP | 64-LQFP | 80-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP | 64-LQFP |
| Supplier Device Package | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 80-LQFP (12x12) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) | 64-LFQFP (10x10) |
