Please send RFQ , we will respond immediately.

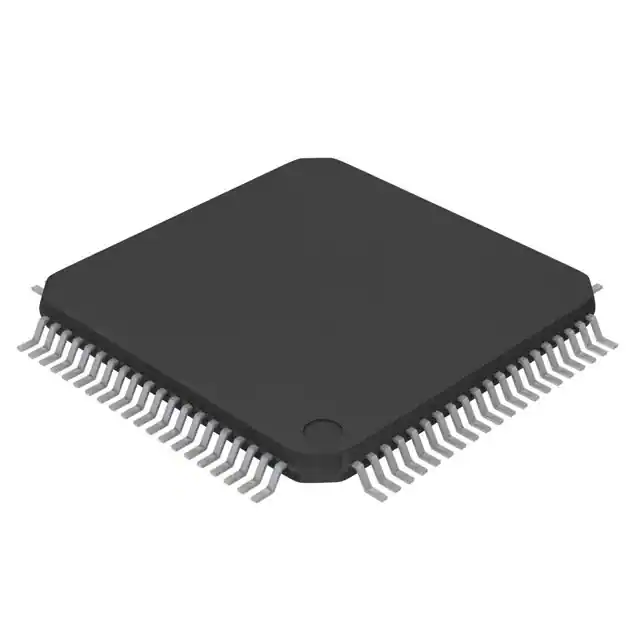

| Part Number | R5F10NMJDFB#10 | R5F10NMJDFB#15 | R5F10NPJDFB#10 | R5F10NMJDFB#30 | R5F10NMJDFB#50 | R5F10NMEDFB#10 | R5F10NMGDFB#10 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Active | Not For New Designs | Discontinued at Digi-Key | Active | Not For New Designs | Not For New Designs |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART | CSI, I²C, IrDA, LINbus, UART/USART |
| Peripherals | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT | LCD, LVD, POR, PWM, WDT |
| Number of I/O | 44 | 44 | 60 | 52 | 52 | 44 | 44 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 64KB (64K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| RAM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 6K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Data Converters | A/D 4x10b, 3x24b Sigma-Delta | A/D 4x10b, 3x24b Sigma-Delta | A/D 6x10b, 4x24b Sigma-Delta | A/D 4x10b, 3x24b | A/D 4x10b, 3x24b | A/D 4x10b, 3x24b Sigma-Delta | A/D 4x10b, 3x24b Sigma-Delta |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-LQFP | 80-LQFP | 100-LQFP | 80-LQFP | 80-LQFP | 80-LQFP | 80-LQFP |
| Supplier Device Package | 80-LQFP (12x12) | 80-LQFP (12x12) | 100-LFQFP (14x14) | 80-LQFP (12x12) | 80-LQFP (12x12) | 80-LQFP (12x12) | 80-LQFP (12x12) |
