| Part Number | R5F10BBGKNA#G5 | R5F10BGGKNA#G5 | R5F10BBGLNA#G5 | R5F10BBGKNA#W5 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 24MHz | 24MHz | 32MHz | 24MHz |
| Connectivity | CANbus, CSI, I²C, LINbus, SPI, UART/USART | CANbus, CSI, I²C, LINbus, SPI, UART/USART | CANbus, CSI, I²C, LINbus, SPI, UART/USART | CANbus, CSI, I²C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 25 | 38 | 25 | 25 |
| Program Memory Size | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b SAR | A/D 17x10b SAR | A/D 12x10b SAR | A/D 12x10b SAR |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount, Wettable Flank | Surface Mount | Surface Mount |

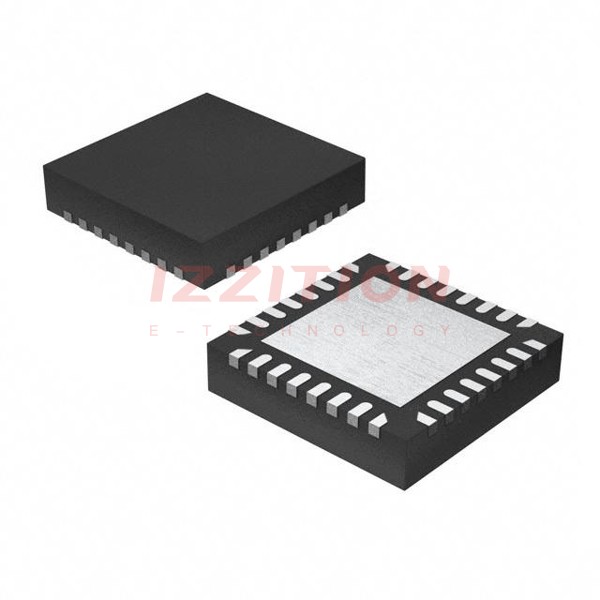

| Package / Case | 32-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-HVQFN (5x5) | 48-HVQFN (7x7) | 32-HVQFN (5x5) | 32-HVQFN (5x5) |
