Please send RFQ , we will respond immediately.
| Part Number | R5F10367DSP#V5 | R5F10367ASP#V5 | R5F10367DSP#35 | R5F10367DSP#55 | R5F10367DSP#V0 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Active | Active | Obsolete |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 24MHz | 24MHz | 24MHz | 24MHz | 24MHz |
| Connectivity | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART | CSI, I²C, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 14 | 14 | 14 | 14 | 14 |
| Program Memory Size | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 11x8/10b | A/D 11x8/10b | A/D 11x8/10b | A/D 11x8/10b | A/D 11x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

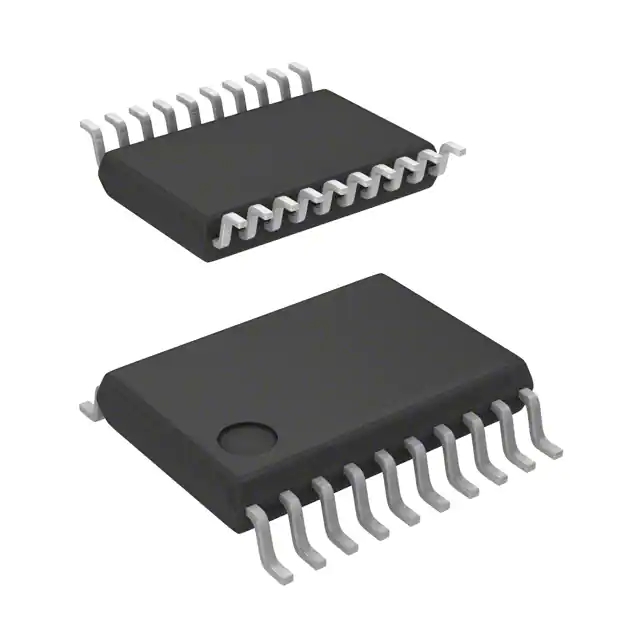

| Package / Case | 20-LSSOP (0.173", 4.40mm Width) | 20-LSSOP (0.173", 4.40mm Width) | 20-LSSOP (0.173", 4.40mm Width) | 20-LSSOP (0.173", 4.40mm Width) | 20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-LSSOP | 20-LSSOP | 20-LSSOP | 20-LSSOP | 20-LSSOP |
