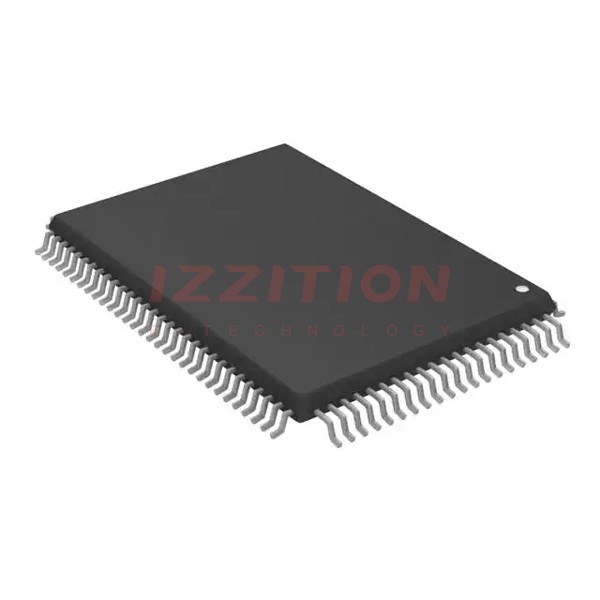

| Part Number | R5F101PHAFA#30 | R5F101PJAFA#30 | R5F101PKAFA#30 | R5F101PLAFA#30 | R5F101PHAFB#30 | R5F101PHAFA#50 | R5F101PHDFA#30 | R5F101MHAFA#30 | R5F101PFAFA#30 | R5F101PGAFA#30 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 64 | 82 | 82 |
| Program Memory Size | 192KB (192K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | 512KB (512K x 8) | 192KB (192K x 8) | 192KB (192K x 8) | 192KB (192K x 8) | 192KB (192K x 8) | 96KB (96K x 8) | 128KB (128K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 16K x 8 | 20K x 8 | 24K x 8 | 32K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 8K x 8 | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 20x8/10b | A/D 20x8/10b | A/D 20x8/10b | A/D 20x8/10b | A/D 20x8/10b | A/D 20x8/10b | A/D 20x8/10b | A/D 17x8/10b | A/D 20x8/10b | A/D 20x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 80-LQFP | 100-LQFP | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x20) | 100-LQFP (14x20) | 100-LQFP (14x20) | 100-LQFP (14x20) | 100-LQFP (14x14) | 100-LQFP (14x20) | 100-LQFP (14x20) | 80-LQFP (14x14) | 100-LQFP (14x20) | 100-LQFP (14x20) |
