Please send RFQ , we will respond immediately.

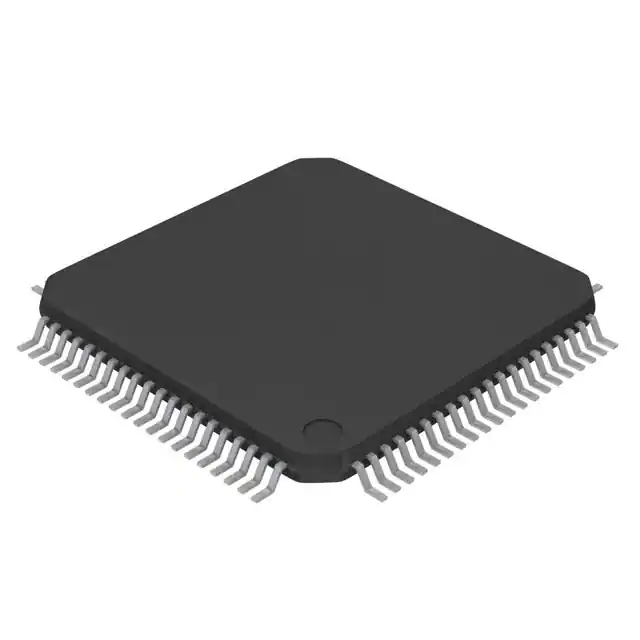

| Part Number | R5F101MHAFA#50 | R5F101MHAFB#50 | R5F101MJAFA#50 | R5F101MKAFA#50 | R5F101PHAFA#50 | R5F101MLAFA#50 | R5F101LHAFA#50 | R5F101MFAFA#50 | R5F101MGAFA#50 | R5F101MHAFA#10 | R5F101MHAFA#30 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 64 | 64 | 64 | 64 | 82 | 64 | 48 | 64 | 64 | 64 | 64 |
| Program Memory Size | 192KB (192K x 8) | 192KB (192K x 8) | 256KB (256K x 8) | 384KB (384K x 8) | 192KB (192K x 8) | 512KB (512K x 8) | 192KB (192K x 8) | 96KB (96K x 8) | 128KB (128K x 8) | 192KB (192K x 8) | 192KB (192K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 16K x 8 | 16K x 8 | 20K x 8 | 24K x 8 | 16K x 8 | 32K x 8 | 16K x 8 | 8K x 8 | 12K x 8 | 16K x 8 | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 17x8/10b | A/D 17x8/10b | A/D 17x8/10b | A/D 17x8/10b | A/D 20x8/10b | A/D 17x8/10b | A/D 12x8/10b | A/D 17x8/10b | A/D 17x8/10b | A/D 17x8/10b | A/D 17x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 80-LQFP | 80-LQFP | 80-LQFP | 80-LQFP | 100-LQFP | 80-LQFP | 64-LQFP | 80-LQFP | 80-LQFP | 80-LQFP | 80-LQFP |
| Supplier Device Package | 80-LQFP (14x14) | 80-LFQFP (12x12) | 80-LQFP (14x14) | 80-LQFP (14x14) | 100-LQFP (14x20) | 80-LQFP (14x14) | 64-LQFP (12x12) | 80-LQFP (14x14) | 80-LQFP (14x14) | 80-LQFP (14x14) | 80-LQFP (14x14) |
