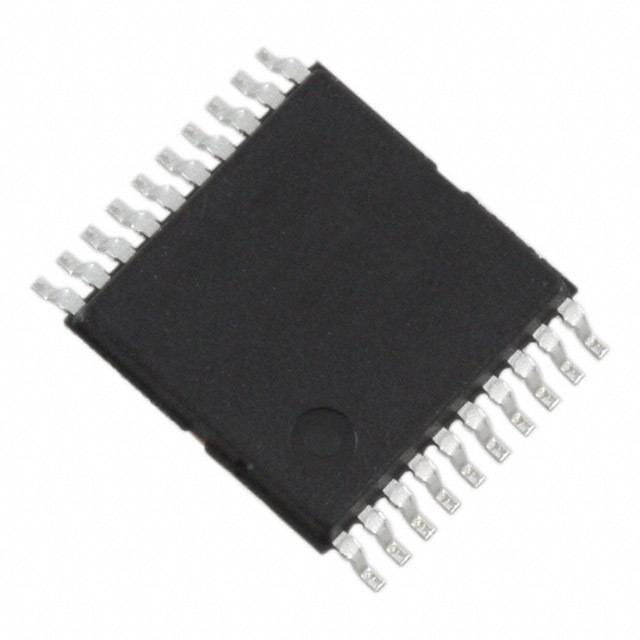

| Part Number | R5F1016AA100SP#V0 | R5F1016AA100SP#30 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active |
| Core Processor | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz |
| Connectivity | CSI, I²C, UART/USART | CSI, I²C, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 13 | 13 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 6x8/10b | A/D 6x8/10b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 20-LSSOP (0.240", 6.10mm Width) | 20-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 20-LSSOP | 20-LSSOP |
