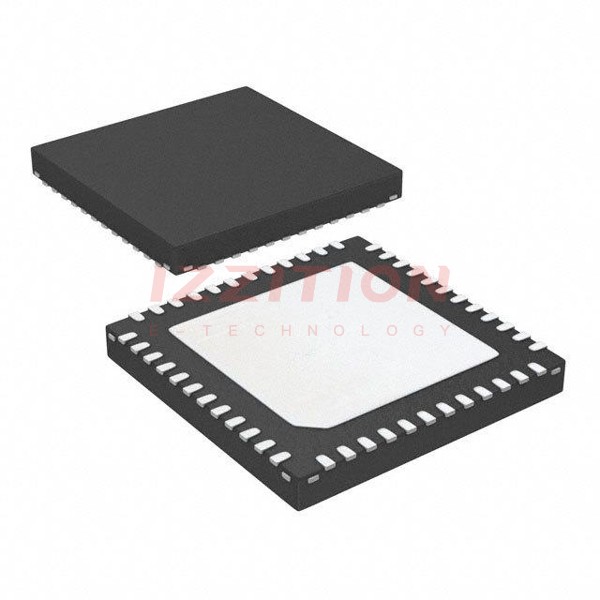

| Part Number | R5F100GEANA#U0 | R5F100GJANA#U0 | R5F100GFANA#U0 | R5F100GGANA#U0 | R5F100GHANA#U0 | R5F100GEANA#W0 | R5F100GEDNA#U0 | R5F100GEGNA#U0 | R5F100GAANA#U0 | R5F100GCANA#U0 | R5F100GDANA#U0 | R5F100GEANA#20 | R5F100GEANA#40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
| Program Memory Size | 64KB (64K x 8) | 256KB (256K x 8) | 96KB (96K x 8) | 128KB (128K x 8) | 192KB (192K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 4K x 8 | 20K x 8 | 8K x 8 | 12K x 8 | 16K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 2K x 8 | 2K x 8 | 3K x 8 | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b | A/D 10x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) | 48-HWQFN (7x7) |
