Please send RFQ , we will respond immediately.

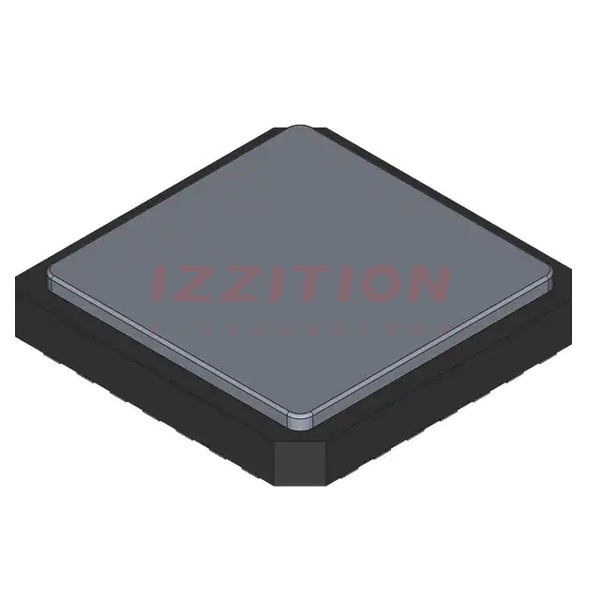

| Part Number | R5F100BCANA#U0 | R5F100ECANA#U0 | R5F100BDANA#U0 | R5F100BFANA#U0 | R5F100BGANA#U0 | R5F100BCANA#W0 | R5F100BCDNA#U0 | R5F100BCGNA#U0 | R5F100BAANA#U0 | R5F100BCANA#00 | R5F100BCANA#20 | R5F100BCANA#40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 22 | 28 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 96KB (96K x 8) | 128KB (128K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 8K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 2K x 8 | 2K x 8 | 3K x 8 | 8K x 8 | 12K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V |
| Data Converters | A/D 8x8/10b | A/D 9x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad | 40-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-HWQFN (5x5) | 40-HWQFN (6x6) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) | 32-HWQFN (5x5) |
