Please send RFQ , we will respond immediately.

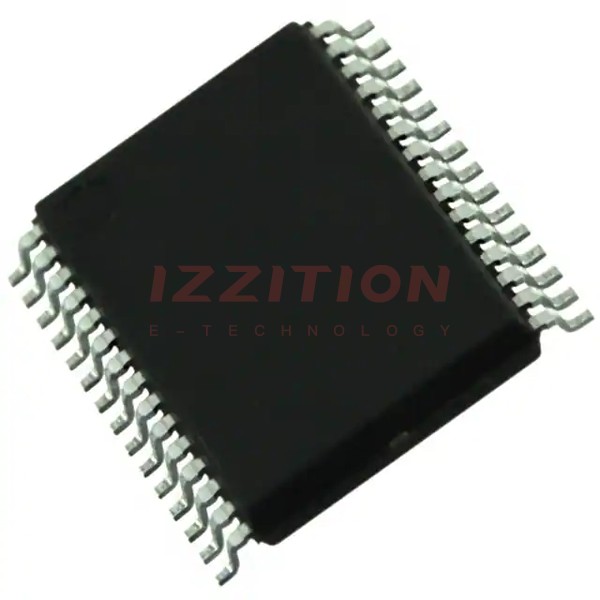

| Part Number | R5F100AAGSP#30 | R5F100ACGSP#30 | R5F100ADGSP#30 | R5F100AEGSP#30 | R5F100AFGSP#30 | R5F100AGGSP#30 | R5F100AAGSP#50 | R5F100AAGSP#V0 | R5F100AAGSP#X0 | R5F100AAASP#30 | R5F100AADSP#30 | R5F100AAGSP#10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Core Processor | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 | RL78 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz | 32MHz |
| Connectivity | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART | CSI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| Program Memory Size | 16KB (16K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 64KB (64K x 8) | 96KB (96K x 8) | 128KB (128K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 8K x 8 | 8K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 2K x 8 | 2K x 8 | 3K x 8 | 2K x 8 | 8K x 8 | 12K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 2.4V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 1.6V ~ 5.5V | 2.4V ~ 5.5V |
| Data Converters | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b | A/D 8x8/10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) | 30-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP | 30-LSSOP |
