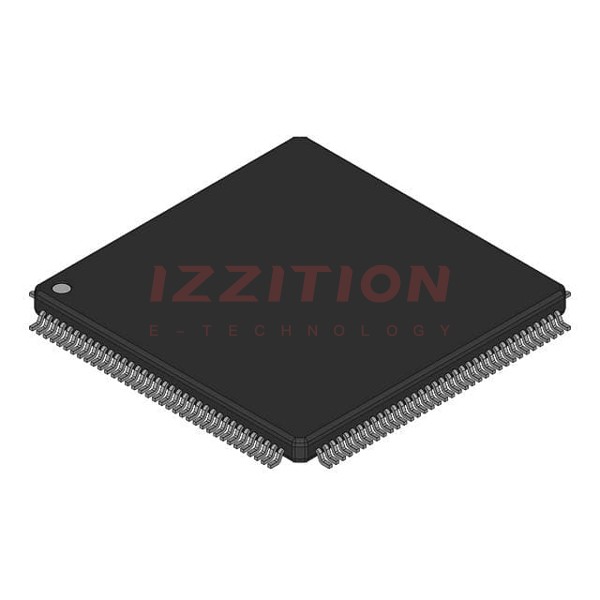

| Part Number | R4F24568NVFQV | R4F24568NVZFQV | R4F24568NVRFQV | R4F24569NVFQV | R4F24268NVFQV | R4F24565NVFQV | R4F24568NFQV |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Active | Obsolete |
| Core Processor | H8S/2600 | H8S/2600 | H8S/2600 | H8S/2600 | H8S/2600 | H8S/2600 | H8S/2600 |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 32MHz | 32MHz | 32MHz | 32MHz | 33MHz | 32MHz | 32MHz |
| Connectivity | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB | EBI/EMI, I²C, IrDA, SCI, SSU, UART/USART, USB |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 94 | 96 | 96 | 96 | 96 | 96 | 96 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 48K x 8 | 48K x 8 | 48K x 8 | 64K x 8 | 48K x 8 | 48K x 8 | 48K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 4.5V ~ 5.5V |
| Data Converters | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 10x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b |
| Oscillator Type | External | External | External | External | External | External | External |
| Operating Temperature | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) | -20°C ~ 75°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP |
| Supplier Device Package | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) | 144-LFQFP (20x20) |
