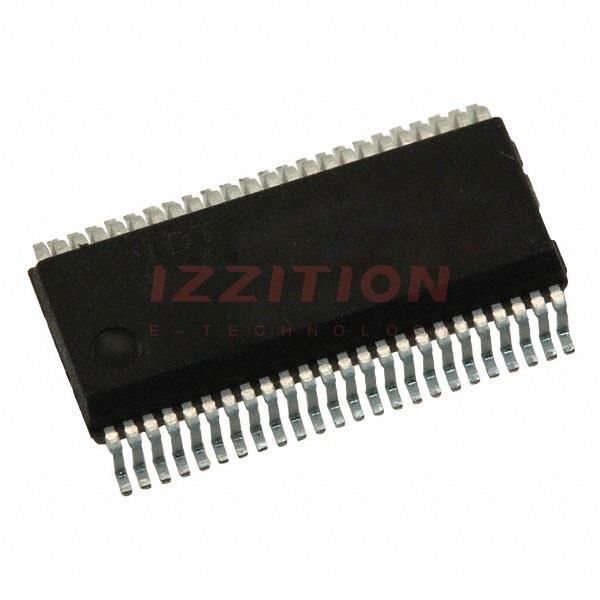

| Part Number | QS4A215Q1G | QS4A215Q1G8 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SP4T | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 17Ohm | 17Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - |
| Voltage - Supply, Single (V+) | 5V | 5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 6ns, 6ns | 6ns, 6ns |
| -3db Bandwidth | 700MHz | 700MHz |
| Charge Injection | 1.5pC | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 14pF | 6pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 10nA | 10nA |
| Crosstalk | -68dB @ 5MHz | -68dB @ 5MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 48-FSOP (0.154", 3.90mm Width) | 48-FSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 48-QVSOP | 48-QVSOP |
