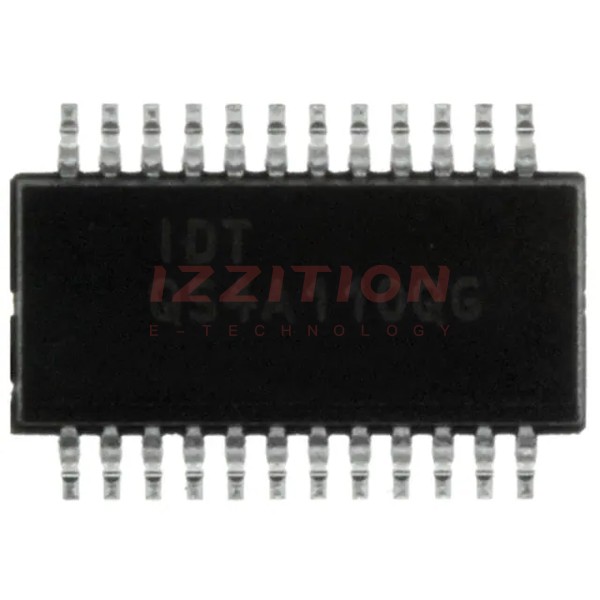

| Part Number | QS4A110QG | QS4A210QG | QS4A110QG8 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| Switch Circuit | 5PST - NO | SP4T | 5PST - NO |
| Multiplexer/Demultiplexer Circuit | - | 4:1 | - |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 17Ohm | 17Ohm | 17Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | 5V | 5V | 5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 6ns, 6.5ns | 6ns, 6ns | 6ns, 6.5ns |
| -3db Bandwidth | 1.8GHz | 700MHz | 1.8GHz |
| Charge Injection | 1.5pC | 1.5pC | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 5.6pF, 7.4pF | 5pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 2nA | 1nA |
| Crosstalk | -70dB @ 5.5MHz | -68dB @ 5.5MHz | -70dB @ 5.5MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 24-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 24-QSOP | 16-QSOP | 24-QSOP |
