PS9309L-V-E3-AX
  • Share:

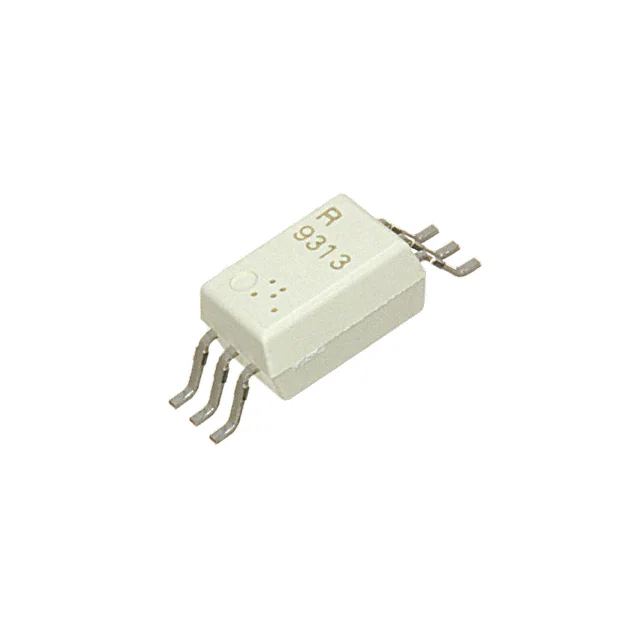

Renesas Electronics America Inc PS9309L-V-E3-AX

Manufacturer No:
PS9309L-V-E3-AX
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
PS9309L-V-E3-AX Datasheet
ECAD Model:
-
Description:
HI-SPD OPTOCPLR 6PIN SDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:-
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Rise / Fall Time (Typ):24ns, 3.2ns
Voltage - Forward (Vf) (Typ):1.55V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:6-SDIP Gull Wing
0 Remaining View Similar

In Stock

$2.10
187

Please send RFQ , we will respond immediately.
