Renesas Electronics America Inc-PS9308L-V-AX - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Optical Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	25kV/µs
Propagation Delay tpLH / tpHL (Max):	250ns, 250ns
Pulse Width Distortion (Max):	100ns
Rise / Fall Time (Typ):	50ns, 50ns
Current - Output High, Low:	1.5A, 1.5A
Current - Peak Output:	2A
Voltage - Forward (Vf) (Typ):	1.56V
Current - DC Forward (If) (Max):	25 mA
Voltage - Output Supply:	15V ~ 30V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP
Approval Agency:	CSA, SEMKO, UL, VDE

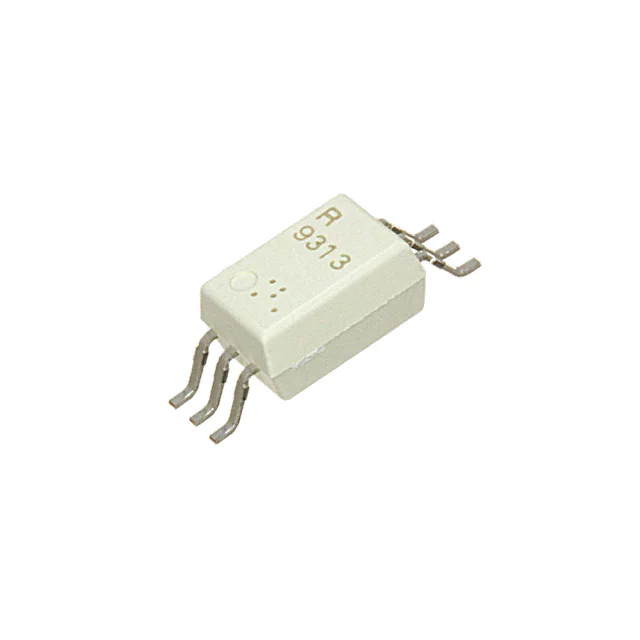

Renesas Electronics America Inc PS9308L-V-AX
