Renesas Electronics America Inc-PS9303L2-V-E3-AX - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	1Mbps
Propagation Delay tpLH / tpHL (Max):	500ns, 550ns
Rise / Fall Time (Typ):	120ns, 90ns
Voltage - Forward (Vf) (Typ):	1.6V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP Gull Wing

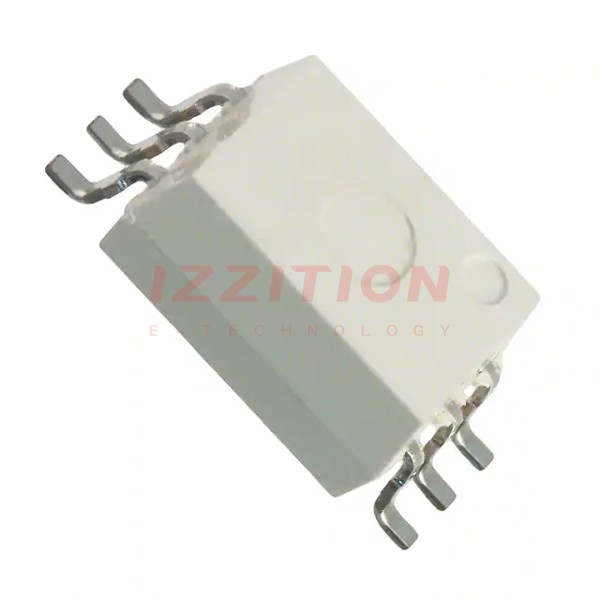

Renesas Electronics America Inc PS9303L2-V-E3-AX
