Renesas Electronics America Inc-PS9123-F3-AX - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	13 mA
Data Rate:	15Mbps
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 5.5V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:	5-SO

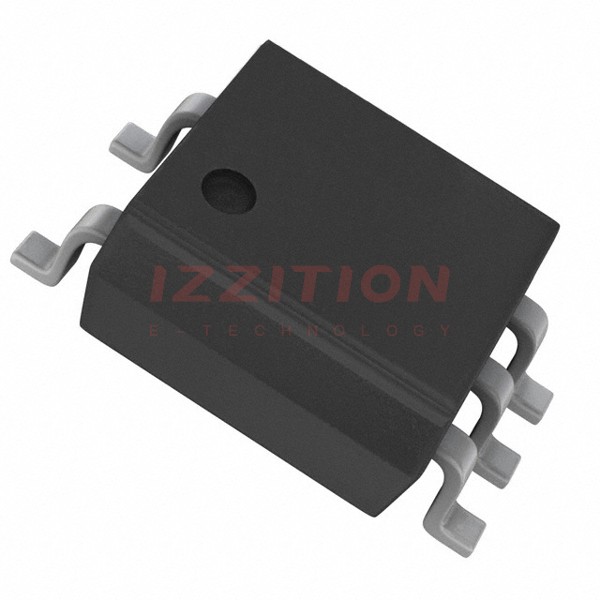

Renesas Electronics America Inc PS9123-F3-AX
