PS9117A-V-F3-AX
  • Share:

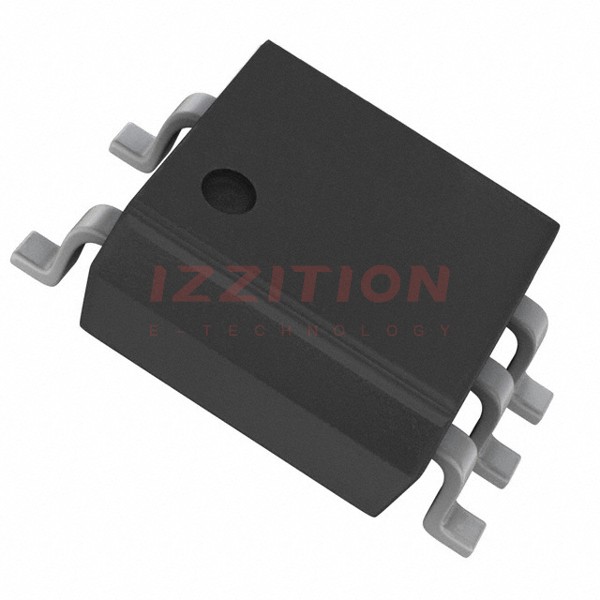

Renesas Electronics America Inc PS9117A-V-F3-AX

Manufacturer No:
PS9117A-V-F3-AX
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
PS9117A-V-F3-AX Datasheet
ECAD Model:
-
Description:
OPTOISO 3.75KV OPN COLLECTOR 5SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):15kV/µs
Input Type:DC
Output Type:Open Collector
Current - Output / Channel:25 mA
Data Rate:10Mbps
Propagation Delay tpLH / tpHL (Max):75ns, 75ns
Rise / Fall Time (Typ):20ns, 5ns
Voltage - Forward (Vf) (Typ):1.65V
Current - DC Forward (If) (Max):30mA
Voltage - Supply:4.5V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package:5-SO
0 Remaining View Similar

In Stock

$1.14
305

Please send RFQ , we will respond immediately.
