PS8501L2-AX
  • Share:

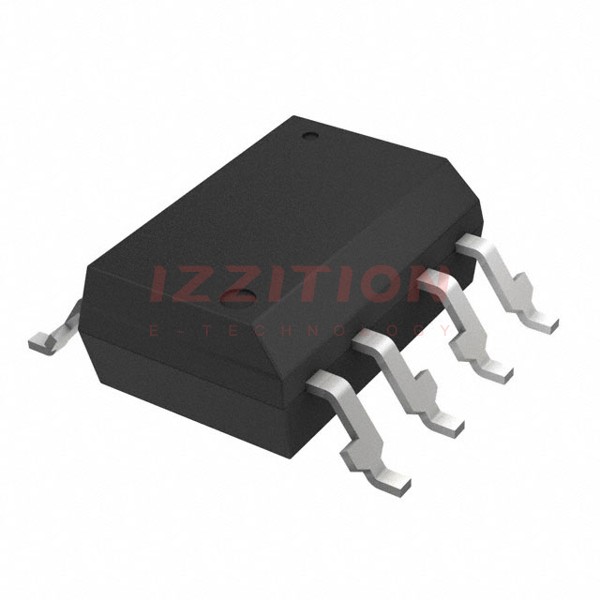

Renesas Electronics America Inc PS8501L2-AX

Manufacturer No:
PS8501L2-AX
Manufacturer:
Renesas Electronics America Inc
Package:
Tube
Datasheet:
PS8501L2-AX Datasheet
ECAD Model:
-
Description:
OPTOISO 5KV TRANS W/BASE 8SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):15% @ 16mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):220ns, 350ns
Rise / Fall Time (Typ):-
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):35V
Current - Output / Channel:8mA
Voltage - Forward (Vf) (Typ):1.7V
Current - DC Forward (If) (Max):25 mA
Vce Saturation (Max):-
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:8-SMD, Gull Wing
Supplier Device Package:8-SMD
0 Remaining View Similar

In Stock

$3.49
205

Please send RFQ , we will respond immediately.
