PS2913-1-M-AX
  • Share:

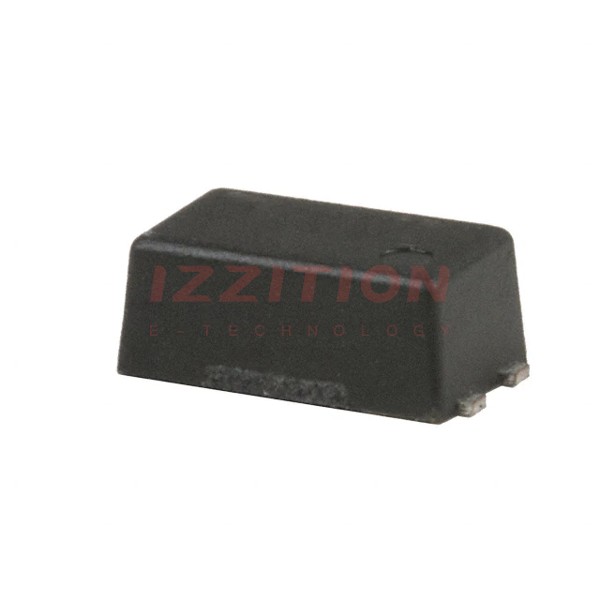

Renesas Electronics America Inc PS2913-1-M-AX

Manufacturer No:
PS2913-1-M-AX
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
PS2913-1-M-AX Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 2.5KV TRANS 4SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):50% @ 1mA
Current Transfer Ratio (Max):100% @ 1mA
Turn On / Turn Off Time (Typ):80µs, 50µs
Rise / Fall Time (Typ):10µs, 10µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):120V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):1.1V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Flat Leads
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

$2.19
215

Please send RFQ , we will respond immediately.
