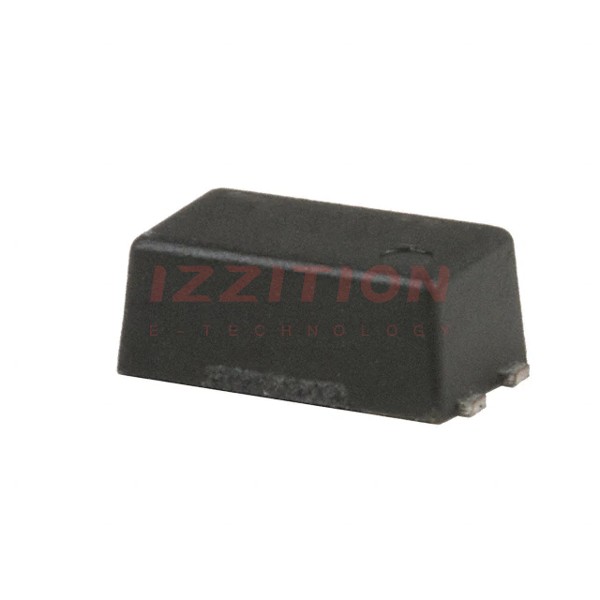

PS2911-1-M-AX Image
×
Favorite
Compare
Add to RFQ
Share:
Renesas Electronics America Inc PS2911-1-M-AX
Manufacturer No:
PS2911-1-M-AX
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
PS2911-1-M-AX Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 2.5KV TRANS 4-SMD
Delivery:
Payment:
Product Attributes
Number of Channels:
1
Voltage - Isolation:
2500Vrms
Current Transfer Ratio (Min):
100% @ 1mA
Current Transfer Ratio (Max):
200% @ 1mA
Turn On / Turn Off Time (Typ):
40µs, 120µs
Rise / Fall Time (Typ):
5µs, 10µs
Input Type:
DC
Output Type:
Transistor
Voltage - Output (Max):
40V
Current - Output / Channel:
40mA
Voltage - Forward (Vf) (Typ):
1.1V
Current - DC Forward (If) (Max):
50 mA
Vce Saturation (Max):
300mV
Operating Temperature:
-55°C ~ 100°C
Mounting Type:
Surface Mount
Package / Case:
4-SMD, Flat Leads
Supplier Device Package:
4-Mini-Flat
0
Remaining
View Similar
In Stock
UnitPrice:
$1.99
Quantity:
285
