PS2806-4-A
  • Share:

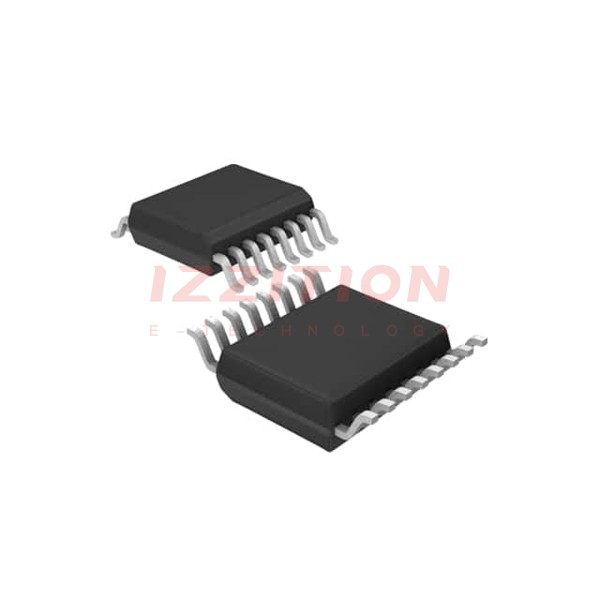

Renesas Electronics America Inc PS2806-4-A

Manufacturer No:
PS2806-4-A
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
PS2806-4-A Datasheet
ECAD Model:
-
Description:
OPTOISOLTR 2.5KV 4CH DARL 16SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:4
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):200% @ 1mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):200µs, 200µs
Input Type:AC, DC
Output Type:Darlington
Voltage - Output (Max):40V
Current - Output / Channel:100mA
Voltage - Forward (Vf) (Typ):1.1V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):1V
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.173", 4.40mm Width)
Supplier Device Package:16-SOP
0 Remaining View Similar

In Stock

-
486

Please send RFQ , we will respond immediately.
