PS2801C-1-L-A
  • Share:

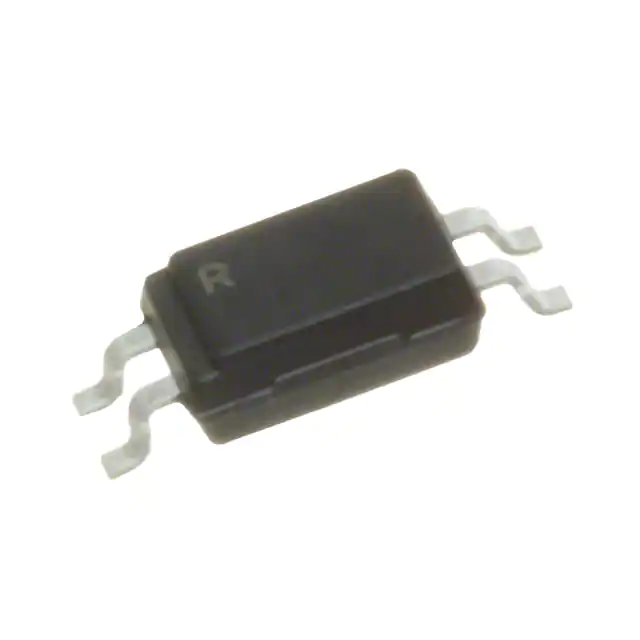

Renesas Electronics America Inc PS2801C-1-L-A

Manufacturer No:
PS2801C-1-L-A
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
PS2801C-1-L-A Datasheet
ECAD Model:
-
Description:
OPTOISOLATOR 2.5KV TRANS 4SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:2500Vrms
Current Transfer Ratio (Min):100% @ 5mA
Current Transfer Ratio (Max):300% @ 5mA
Turn On / Turn Off Time (Typ):10µs, 7µs
Rise / Fall Time (Typ):5µs, 7µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:30mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):30 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:4-SOIC (0.173", 4.40mm Width)
Supplier Device Package:4-SSOP
0 Remaining View Similar

In Stock

$0.88
640

Please send RFQ , we will respond immediately.
