PS2561DL2-1Y-V-E3-A
  • Share:

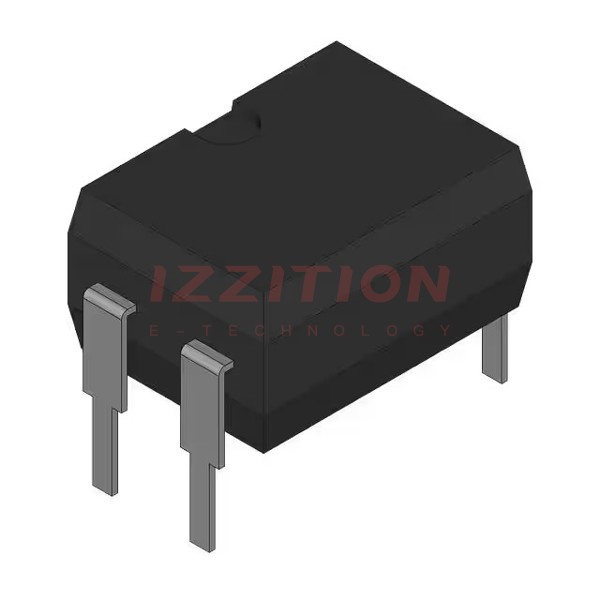

Renesas Electronics America Inc PS2561DL2-1Y-V-E3-A

Manufacturer No:
PS2561DL2-1Y-V-E3-A
Manufacturer:
Renesas Electronics America Inc
Package:
Bulk
Datasheet:
PS2561DL2-1Y-V-E3-A Datasheet
ECAD Model:
-
Description:
TRANSISTOR OUTPUT OPTOCOUPLER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):400% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):3µs, 5µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.2V
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 110°C
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:4-SMD
0 Remaining View Similar

In Stock

-
212

Please send RFQ , we will respond immediately.
